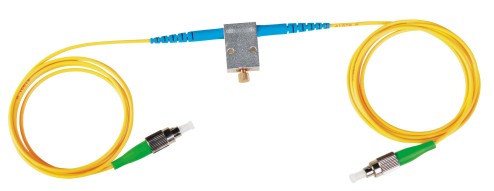

Adjustable Attenuator

Description:

    Adjustable attenuator is available in without interrupt circuit, to a certain frequency range in the form of step adjust the power level of the microwave circuit, can also be used as a device inside the machine of attenuator, has small volume, high precision, stable and reliable, etc.

Features:

  Max Operation Power

  high-precision

  Low Insertion Loss

  High return Loss

  High Reliability and Stability

Applications:

  Telecommunication Network

  LAN System

  CATV System

  Fiber Optical Network System

 Specifications:

Parameter

Single

Dual

Attenuation value (dB)

3, 5, 10, 15, 20+10%

3, 5, 10, 15, 20+10%

Operating Wavelength (nm)

1310+40, 1550+40, 1585+ 40,

or Client specify

1310/1550+40, 1310/1585+40,

or Client specify

Retroreflectance (dB)

> 60

Operating Temperature (℃)

-40 ~ + 85

Storage Temperature (℃)

-40℃~+85℃

Fiber Type

Corning singlemode SMF-28

Fiber Length (m)

1m or Client specify

Dimension (mm)

M, A, B, C

 5.Order Information:

Type

Grade

Wavelength

Attenuation value

Port

Package

Pigtal Type

Fiber Type

Connector

A

P

A

85=850nm

98=980nm

13=1310nm

15=1550nm

35=1310/1550nm

36=1310/1585nm

20=20dB

15=15dB

10=10dB

05=5dB

03=3dB

0101=1x1

M=Package M
A=Package A
B=Package B
C=Package C

1=250um

2=900um

3=3mm

0=SMF-28
1=Corning Flexcore
D=DS Fiber

0=None 1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

X=Special

Type: A - Single mode on-line type attenuator
