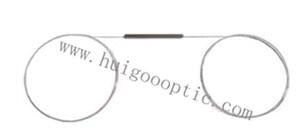

Single Fiber Collimator

1.Description:

Single fiber collimator by tail fiber and self-focusing lens accurate positioning. It can be transmitted to the optical fiber into a collimating light (parallel light), or parallel to the outside world (approximate parallel) coupled to a single-mode optical fiber in the light.

2.Features:

Low Insertion Loss

High Return Loss

High Reliability and Stability

3.Applications:

Fiber optic experiments

Laser beam collimation

Fiber to fiber coupling

Micro Optical Components

4.Specifications:

Parameter

Grade P

Grade A

Operating Wavelength (nm)

1310±30nm,1550±30nm,

1310/1550±30nm,980/1550±30nm ,Others on request

IL(dB)

≤0.20

≤0.25

RL(dB)

≥65

≥60

Power Handling(mW)

≤500

Beam Diameter (mm)

< 0.5

Operating Temperature (℃)

-20℃~+75℃

Storage Temperature (℃)

-40℃~+85℃

Dimension (mm)

ф3.2× L9 or L10  Mental; ф2.78×L8.5  glass

Note: Working distance is 10 mm.

5.Order  Information:

Lens Type

Operating Wavelength

Grade

Work Distance

Pigtail Type

Fiber Length

Dimension

Fiber Type

Connector

CL=C- Lens Type, GL=G- Lens Type

13=1310nm
14=1480nm
15=1550nm
35=1310/1550nm



05=5mm WD
06=6mm WD
……
70=70mm WD



A=1.0m
B=1.5m
C=2.0m
S=Special



0=SMF-28
1=Corning Flexcore
2=50/125μm
3=62.5/125μm
4=100/140μm

0=None

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC





P= Grade P

A= Grade A

B=250um
L=900um

A=3.2×9 or 10mm Mental;
B=2.4×10mm Mental;
C=2.78×8.5mm Glass
D=1.3×8mm Mental
ф1mm G-lens, C-lens COLL
E=1.8×8mm Mental
ф1mm G-lens, C-lens COLL

 Single Fiber Collimator
