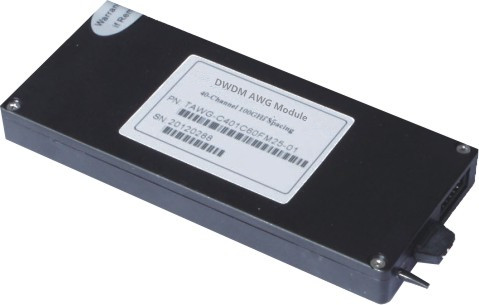

Athermal DWDM AWG 40CH 100G

HuiGoo offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG. Here we present the generic specification for the 40-channel 100GHz Gaussian Athermal AWG (40 channel AWG) MUX/DEMUX component supplied for use in DWDM system.

Features

Low Insertion Loss

Established silica-on-silicon

Low PDL

Low chromatic dispersion

Telcordia GR-1221-CORE qualified

Applications

DWDM transmission

Wavelength Routing

Optical add/drop multiplexing

Specifications

.

ParameterSpecification
MINTypMax
Number of Channels40
Number Channel Spacing(GHz)100
Cha. Center Wavelength(nm)C-Band
Clear Channel Passband(GHz)±12.5
Wavelength Stability(nm)±0.005
-1 dB Channel Bandwidth(nm)0.4
-3 dB Channel Bandwidth(nm)0.24
Optical Insertion Loss at ITU grid(dB) 4.56.0
Isolation(dB)Adjacent25
Non-Adjacent29
Total Channel Isolation22
Insertion Loss Uniformity(dB)  1.5
Directivity(Mux Only)(dB)40
Insertion Loss Ripple(dB)  1.2
Optical Return loss(dB)40
PDL/Polarization Dependent Loss in Clear Channel Band(dB) 0.30.5
Polarization Mode Dispersion(ps)  0.5
Maximum Optical Power(mW)  23
MUX/DEMUX input/ output Monitoring range(dB/℃)-35 +23
Operating Temperature(℃)-5+25+65
Operating Humidity(%RH)5 95
Storage Temperature(℃)-40 +85
Storage Humidity(%RH)5 95
Package Size(mm)L120×W70×H10
Size between screws(mm)110 x 60

1、IL Represents the worst case over a +/-0.01nm window around the ITU wavelength;

2、PDL was measured on average polarization over a +/- 0.01nm window around the ITU wavelength.


Athermal DWDM AWG 40CH 100G PDF
