1x32 PLC Fiber Splitter, Steel Tube, Bare Fiber, No Connector

  • Category: Optical Splitter
  • Source: 1x32 PLC Fiber Splitter
  • Driver: HuiGoo Optic Co.,Limited
  • Housing: 1x32 PLC Fiber Splitter

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

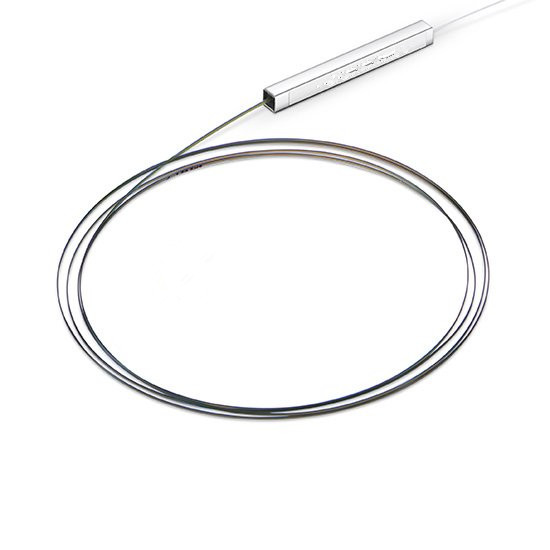

                                            1x32 PLC Fiber Splitter, Steel Tube, Bare Fiber, No Connector

HuiGoo's Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Product Details

Package Style

Steel Tube, Bare Fiber

Configuration Type

1x32

Fiber Type

Singlemode G.657A1

Connector Type

None

Fiber Diameter

250μm

Pigtail Length

1.5m

Insertion Loss

≤16.9dB

Return Loss

≥50dB

Loss Uniformity

≤1.5dB

Directivity

≥55dB

Polarization Dependent Loss

≤0.3dB

Temperature Dependent Loss

≤0.8dB

Wavelength Dependent Loss

≤0.5dB

Operating Bandwidth

1260~1650nm

Operating Temperature

-40~85°C

Storage Temperature

-40~85°C




If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
