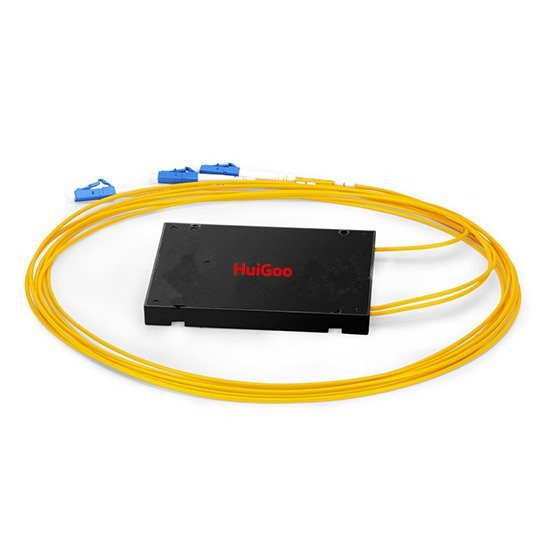

Polarization Beam Combiner/Splitter
1．Description：
The Polarization Beam Combiner/Splitter is a micro-optic device that can combine two polarized light signals into one output fiber,or split one light into polarized outputs with their polarization states orthogonal to each other.The typical configuration of PBC uses the two PM fiber for input and the SM fiber for output.
2．Features：
High Isolation
Low Insertion Loss
High Return Loss
High Reliability and Stability
3．Applications：
Pump Lasers，EDFA
Raman Amplifer
Optical Fiber Sensors
High Speed Communication System
4．Specifications：
Parameter | Grade P | Grade A |
Center Wavelength (nm) | 1310, 1480, 1550 | |
Operating Wavelength Range (nm) | ± 40 | |
IL (Typ. @ 5mm) (dB) | 0.4 | 0.5 |
IL (Max @5mm.) (dB) | 0.6 | 0.7 |
Extinction Ratio (Min. ) (dB) | 20 | 18 |
RL (Min.) (dB) | 50 | |
The polarization axis | slow axis | |
Operating Temperature（℃） | -5 ～ + 70 | |
Storage Temperature（℃） | -40 ～ +85 | |
Fiber Type | PM on port1 and 2, SM or PM on port3 | |
Package Dimensions (mm) | ø5.5x L35 | |
Handing Power(mW) | 500 | |
Note: The K key aim at slow axis;
ake connection will increase IL: 0.3 dB ;reduceRL: 5 dB, reduce extinction ratio: 2 dB.
