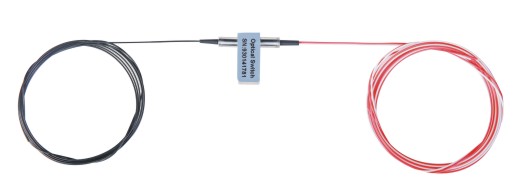

MM Mechanical Optical Switch(2x2)

1.Description:

   Optical switch in the optical signal function on and off in fiber or waveguide path, It will autosense the loss of light on the active input port and toggle the optical switch,transfering from the active to the altemate port.

2.Features:

Low Cost

Low insertion loss

High Isolation

No Plastic Light Path

High Reliability and Stability

3.Applications:

Optical Signal Routing

System Monitoring

Instrument and Equipment

Optical Device Testing and Research

Up/down Road Light Signal

Optical Network Protection/Recovery

 4.Specifications:

Parameter

Value

Operating Wavelength (nm)

850,1310 or 1550 ± 40

850/1310,850/1550,1310/1550

IL (dB)

Grade P

Grade A

Grade P

Grade A

< 1.0

< 1.2

< 1.2

< 1.4

WDL (dB)

≦0.25

≦0.25

≦0.30

≦0.30

PDL(dB)

≦0.05

≦0.05

≦0.05

≦0.05

TDL (dB)

< 0.20

< 0.25

< 0.20

< 0.25

Crosstalk (dB)

>35

>35

>35

>35

Repeatability (dB)

< ± 0.02

RL(dB)

> 35

Switching Time(ms)

<10 typ="" 4="" p="">

Coil Resistance (ohms)

178 ± 10%

Working Voltage (V)

5

Handing Power (mW)

500

Durability (cycle)

>10 million

Operating Temperature(℃)

0 ~ + 70

Storage Temperature(℃)

-40 ~ +85

Fiber Type

SMF-28

Fiber Length (Min.)

1.0 +/- 0.1

Package Dimensions (mm)

32.76 × 12.6 × 11

 5.Electronic Pin Information:

Channel

Port1 To Port3/Port2 To Port4

Port1 To Port4/Port2 To Port3

The Electronic Driver

Non-locking

Pin1

Pin10





Locking

Pin1

Pin5

Pin6

Pin10



V+

GND

GND

V+

Status

Locking/ Non-locking

Pin2-3, Pin8-9 open

Pin2-3, Pin8-9 close

Pin3-4, Pin7-8 close

Pin3-4, Pin7-8 open



6. Order Information:

SMMS

Status

Port

Grade

Operating Wavelength

Fiber Type

Fiber Length

Connector



L=Locking

N=Non-locking

0202=2x2

P= Grade P

A= Grade A

15=1510~1610nm

13=1260~1360nm

35=1310/1550nm

1=250um

2=900um

1=1 m
2=2 m

0= None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

MM Mechanical Optical Switch(2x2)
