QSFP28 LR4 Optical Transceiver

  • Category: QSFP Transceiver
  • Source: QSFP28 LR4 Optical Transceiver
  • Driver: HuiGoo Opttic Co.,Limited
  • Housing: QSFP28 LR4 Optical Transceiver

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

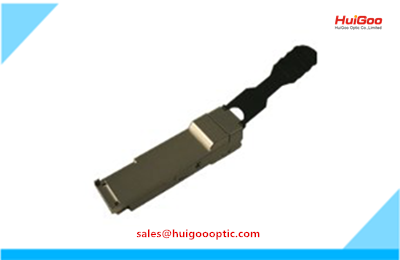

                                                                           QSFP28 LR4 Optical Transceiver

            100G QSFP28 Transceiver is a 100Gb/s Small Form-factor Pluggable (QSFP28) optical module. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s.

                 100G QSFP28 Transceivers :QSFP28 SR4, QSFP28 LR4, QSFP28 IR4PSM 。

Features:

Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant

Applications

100GBASE-LR4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections

Specification:


Part Number
Form Factor
Rate(bps)
Wave (nm)
Power(dBm)
S (dBm)
Rx Tx
Reach
Temp
(deg C)
Power Consumption
Connector
QSFP28 LR4SMF100G1290-1310nm-4.3~4.5-10.6PIN   LWDM EML10km0~70<4.0w< td="">LC








If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
