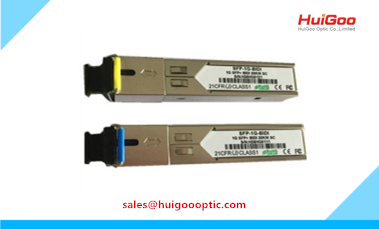

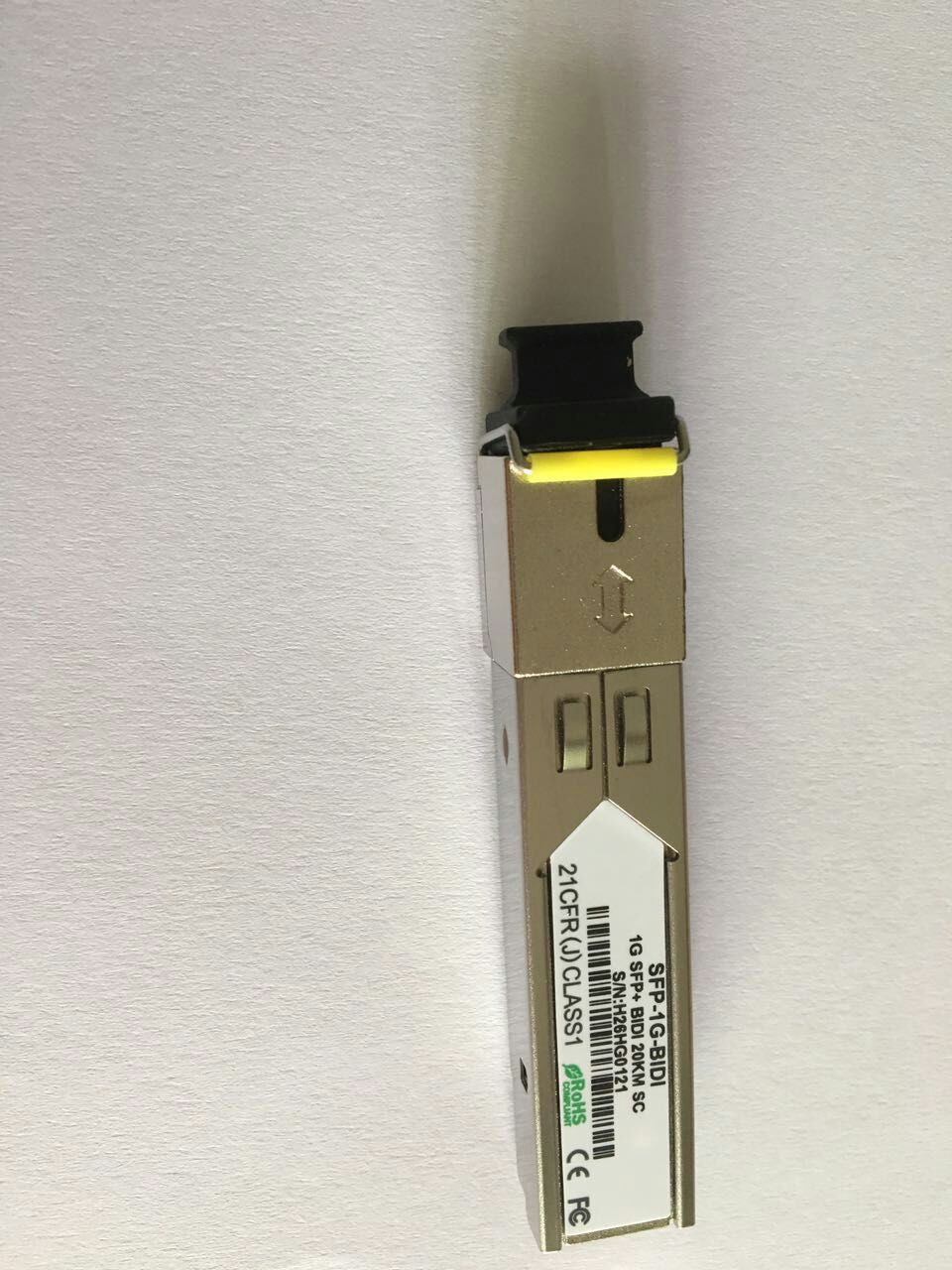

1.25Gbps SFP Bi-Directional Transceiver

  • Category: SFP Bi-Di Transceiver
  • Source: 1.25Gbps SFP Bi-Directional Transceiver
  • Driver: HuiGoo Optic Co.,Limited
  • Housing: 1.25Gbps SFP Bi-Directional Transceiver

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

1.25Gbps SFP Bi-Directional Transceiver, 40km

1490nm TX / 1310 nm RX

Features

· Dual data-rate of 1.25Gbps/1.063Gbps operation

· 1490nm DFB laser and PIN photodetector for 40km transmission

· Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

· Digital Diagnostic Monitoring:


· Internal Calibration or External Calibration

· Compatible with SONET OC-24-LR-1

· Compatible with RoHS

· +3.3V single power supply

· Operating case temperature:

· Standard : 0 to +70

Applications

· Gigabit Ethernet

· Fiber Channel

· Switch to Switch interface

· Switched backplane applications

· Router/Server interface

· Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Ordering information

Part Number

Product Description

HG

1490nm, 1.25Gbps, SC,40km, 0°C~+70°C

HG

1490nm, 1.25Gbps, SC,40km, 0°C~+70°C, With Digital Diagnostic Monitoring

HG

1490nm, 1.25Gbps, LC,40km, 0°C~+70°C

HG

1490nm, 1.25Gbps, LC,40km, 0°C~+70°C, With Digital Diagnostic Monitoring






If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
