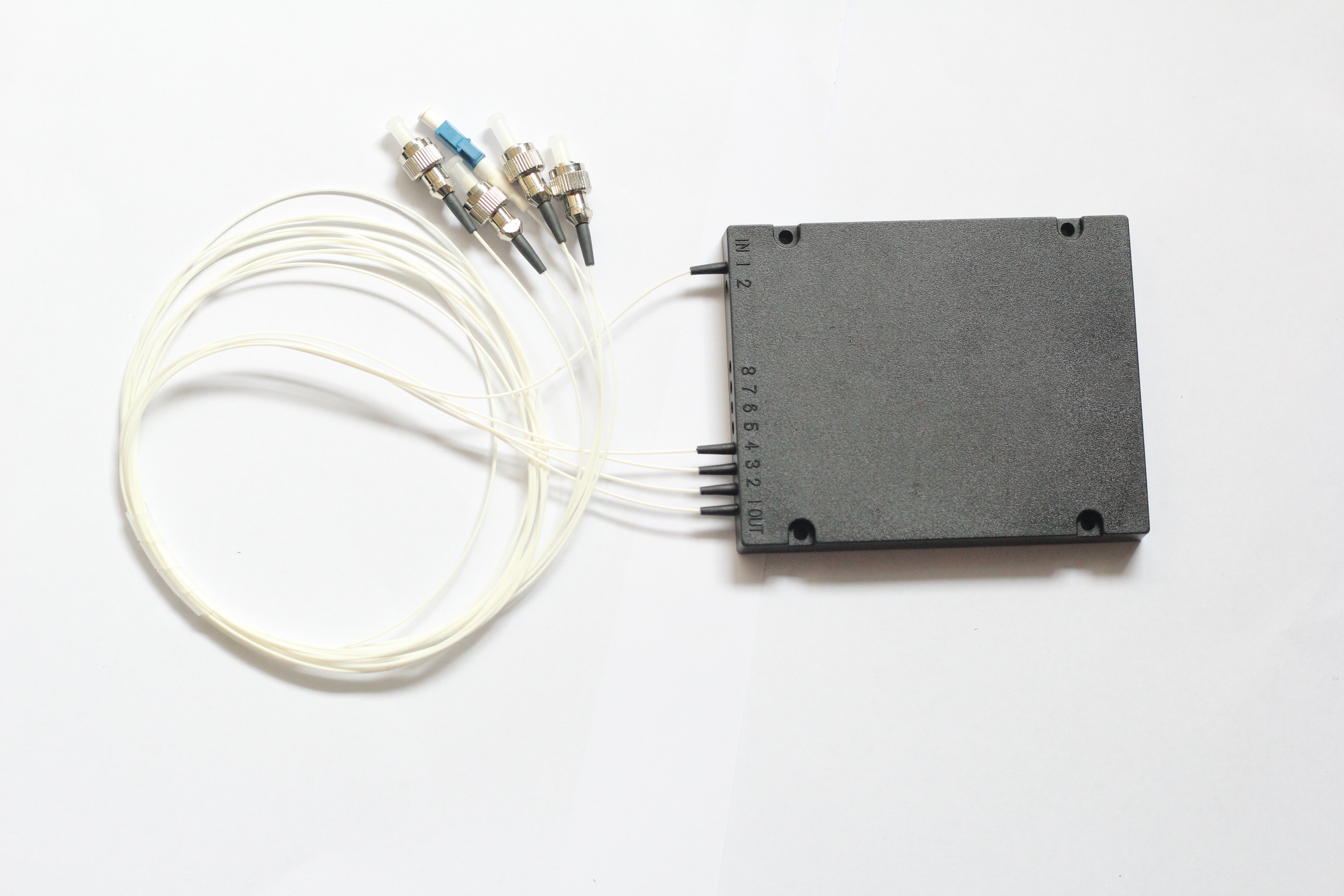

                                               Add-Drop Module Multiplexer


Description:

      100G,200GHZ DWDM Add-Drop Module Multiplexer can be used for wavelength add/drop in telecommunication network system. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path .


Features:

• Low Insertion Loss
• Wide pass band
• High Channel Isolation
• High Stability and reliability
• Epoxy-free on Optical Path


Applications:


• Channel Add/Drop
• DWDM Network
• Wavelength Routing
• Fiber Optical amplifier
• CATV fiberoptic System

Performance Specifications

Parameter

MUX/DEMUX

Channel Wavelength (nm)

ITU Grid

Center wavelength Accuracy (nm)

±0.5

±0.1

Channel Spacing (nm)

100

200

Channel Passband (@-0.5dB bandwidth (nm)

>0.22

>0.5

Pass Channel Insertion Loss (dB)

≤1.0

≤0.9

Reflection Channel Insertion Loss (dB)

≤0.6

≤0.6

Channel  Ripple (dB)

<0.3

Isolation (dB)

Adjacent

>30

Non-adjacent

>40

Inertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

500

Opterating Temperature (℃)

-10~+75

Storage Temperature (℃)

-40~85

Package dimension (mm)

Φ5.5x34 (L38 for 900um Loose tube)

Specifications may change without notice.

Above specification are for device without connector.

Ordering Information

DWDM

X

XX

X

X

XX



ITU

Pass Channel

Fiber Type

Fiber Length

In/Out Connector

1=100G
2=200G

01=Ch01
02=Ch02
……
60=Ch60

1=Bare fiber
2=900um loose tube

1=1m
2=2m

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC
