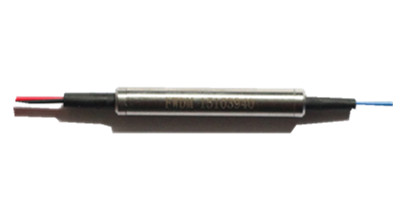

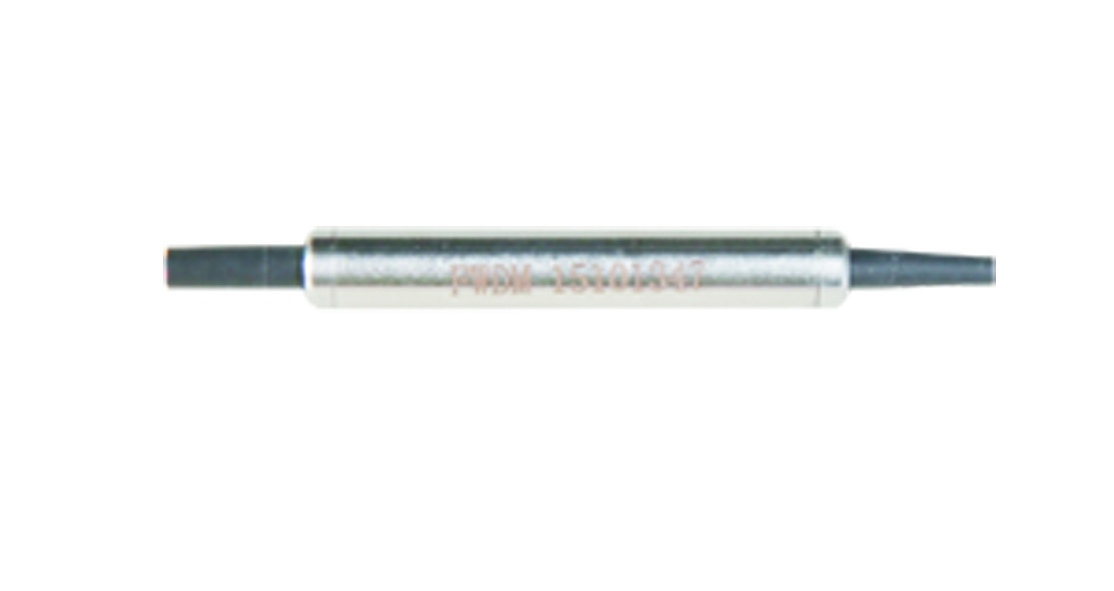

                                                          1X2 FWDM Module High Quality Factory Made In China

      Filter Wavelength Division Multiplexer ( FWDM ) is extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation.  FWDM series is based on environmentally stable Thin Film Filters technology. The device combines or separates light at different wavelengths in a wide wavelength range. It's offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating.

Features

-Low Insertion Loss

-Wide Wavelength Range

-High Channel Isolation

-High stability and reliability

Applications

-System Monitoring

-Transmitters and Fiber

-Fiber optical amplifier

Performance Specification

Parameter



1

2

3

Pass Band Wavelength Range (nm)

1490

1550

1310 & 1490

Reflection Band1 Wavelength Range (nm)

1310&1550

1310&1490

1550

Insertion Loss (dB)

Reflect Channel

≤0.6

Pass Channel

≤0.8

Channel Ripple dB)

<0.3< p="">

Isolation(dB)

Reflect Channel

> 15

Pass Channel

>30

Insertion Loss Temperature Sensitivity (dB/℃)

<0.005< p="">

Polarization Dependent Loss (dB)

<0.1< p="">

Polarization Mode Dispersion (ps)

<0.1< p="">

Directivity (dB)

>50

Return Loss (dB)

>50

Maximum Power Handling (mW)

500

Operating Temperature (℃)

-10 ~80

Storage Temperature (℃)

-40 ~85

Package Dimension (mm)

1. Φ5.5 x L38(for 900um Loose tube or bare fiber ))

2. L90xW20xH9.5(for 2.0 mm or 3.0mm Cable)

Above specification are for device without connector

Order Information

Product

Wavelength

Fiber type

Pigtail Type

Fiber length

Connector

FWDM

1-1490 pass/1310&1550 reflect
2-1550 pass/1310&1490 reflect
3-1310&1490 pass/1550 reflect

1-G652D

2-G657A

3-Other

A—Bare fiber

B—900um loose tube

C—900um tight tube

D—2.0mm loose tube

E—3.0mm loose tube

00—Other

05—0.5m

10—1m

15—1.5m

20—2 m

0—None

1—FC/PC

2—FC/APC

3—SC/PC

4—SC/APC

5—LC/PC

6—LC/APC

7—Other


If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
