Polarization Maintaining Isolator 2000nm

  • Category: Optical Isolator
  • Source: 2000nm Polarization Maintaining Isolator
  • Driver: HuiGoo Optic Co.,Limited
  • Housing: 2000nm Polarization Maintaining Isolator

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

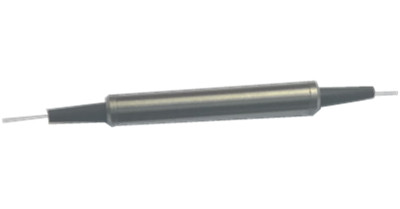

                    2000nm Polarization Maintaining Isolator Single Stage PM Components

HuiGoo's Polarization Maintaining Isolator is a micro-optic device built with an input and an output PM fiber. It is characterized with low insertion loss, high extinction ratio, high isolation, high return loss and excellent environmental stability and reliability. It is widely used in EDFA, Raman amplifier, fiber lasers, optical fiber sensors and instrumentation.


Features:


Low insertion loss

High extinction ratio

High isolation

Excellent stability and reliability


Applications:


Fiber amplifier

Fiber lasers

Fiber Sensors

Instrumentation

Specifications:


                        Type

Parameter

Unit

PM   Isolator (Single stage)

Center   wavelength

nm

2000

Operating   bandwidth

nm

±50

Insertion   loss

dB

≤1.0

Extinction   ratio

dB

≥18(Type   B), ≥20(Type F)

Isolation   @23

dB

≥20

Return   loss (Input/Output)

dB

≥50/50

Handling   power

mW

≤300

Fiber   type

/

SM15-PS-U25D   (Fiber code: 623)

Operating   temperature

-5~+70

Storage   temperature

-40~+85

Dimensions

mm

Ф5.5×L35

* Type B: Both axis working, Type F: Fast axis blocked

.* IL is 0.3dB higher, RL is 5dB lower and ER is 2dB lower for each connector added. The default

key is aligned to slow axis.
