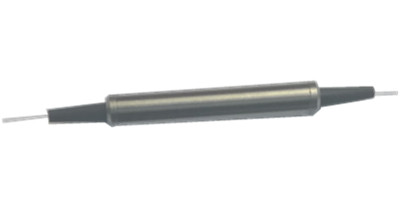

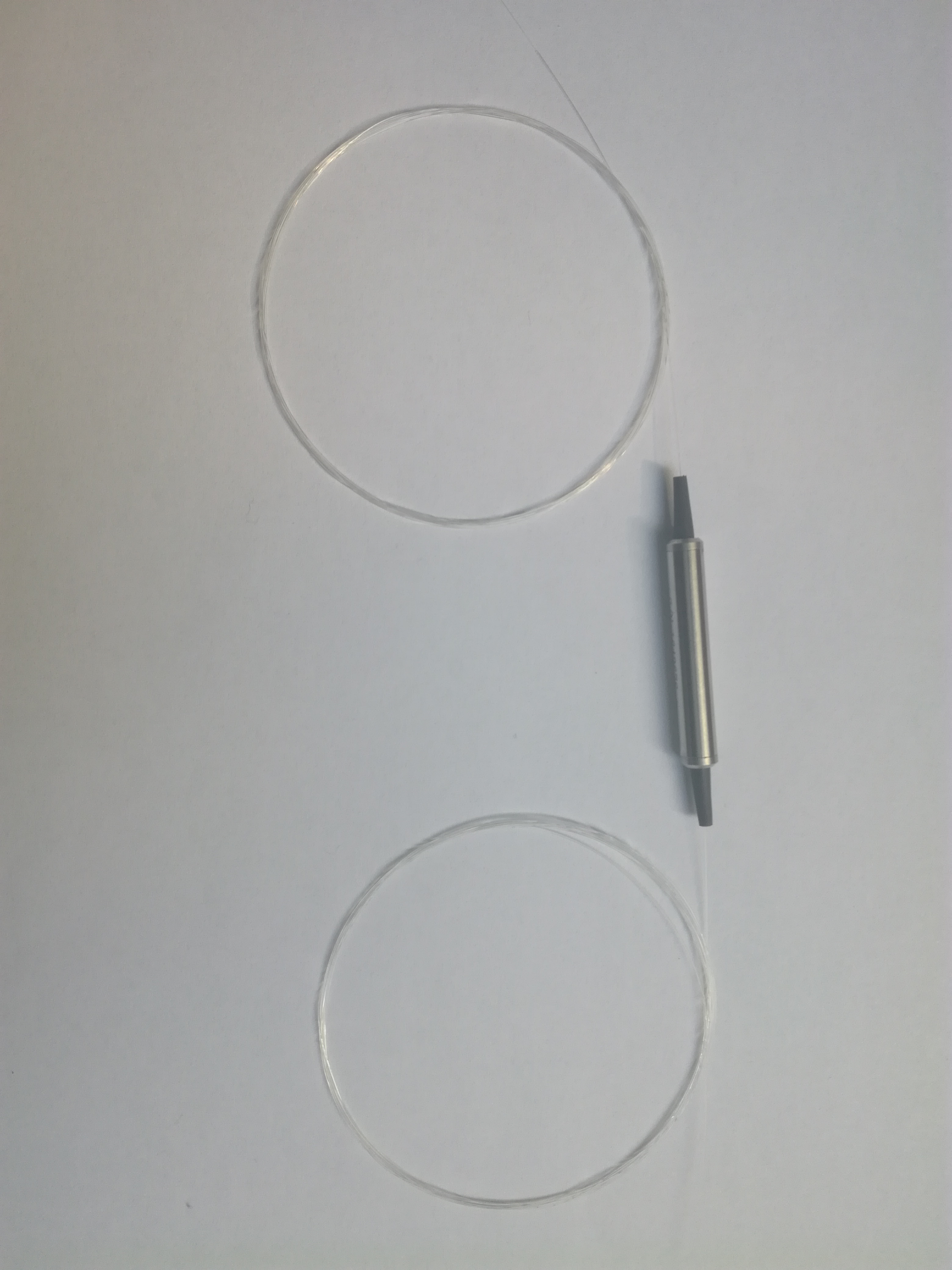

Mini optical Isolator 850nm/980nm/1064nm/1310nm/1550nm fiber components
1．Description：
Mini isolator is a kind of the optical component, its basic function is to realize the positive transfer optical signal, and inhibit reverse light.
2．Features：
Low insertion loss
high isolation
High Return Loss
Low PDL
3．Applications：
EDFA
Optical fiber testing system
CATV System
Telecom System
Wireless Network
4．Specifications：
Parameter | Grade P | Grade A |
Operating Wavelength (nm) | 1310 or 1550 | |
Isolation @ Passband (dB) | ≧42 | ≧40 |
Isolation (dB) | ≧32 | ≧30 |
Insertion Loss @ Passband (dB) | 0.3 | 0.4 |
Insertion Loss (dB) | ≦0.5 | ≦0.7 |
Return Loss (dB) | ≧65/60 | ≧60/55 |
PDL (dB) | <0.05< strong=""> | <0.1< strong=""> |
PMD (ps) | 0.2(0.05 available upon request) | |
Operating Wavelength Range (nm) | ±15 | |
Operating Temperature (℃) | -20 ～ + 70 | |
Storage Temperature (℃) | -40 ～ +85 | |
Fiber Type | Corning SMF-28 | |
Fiber Length (m) | 1 Meter Each End | |
Package Dimensions (mm) | 3.0×25 | |
Handing Power(mW) | 300 | |
5．Order Information:
ISO Type | Operating Wavelength | Grade | Fiber Type | Fiber Length | Connector |
Min= Mini | 13=1310nm 14=1480nm 15=1550nm LB=L Band | S= Special P=Grade P A= Grade A | 1=250um 2=900um | 1=1.0m | 0=None |
