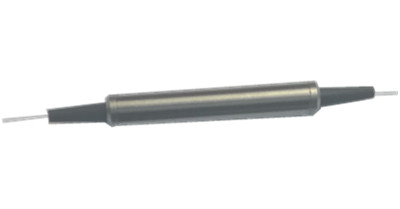

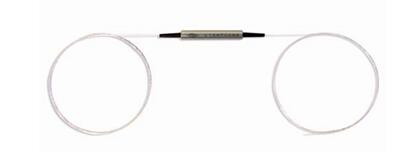

High Power (Non-PM or PM)Isolator
1310nm or 1550nm
Description
Isolators are directional optical component used in fiber optical module,EDFA,and communication systems.
Features
High isolation
Low insertion loss
High return loss
Applications
EDFA
Communication systems Normal Size for non pm fiber Normal Size for pm fiber Higher Power Size Testing instruments
Specifications
Type Parameter | Unit | ≦5W(PM or Non-PM Isolator) | 5W-10W( Non-PM Isolator) | |||
Single Stage | Dual Stage | Single Stage | Dual Stage | |||
Center wavelength | nm | 1310 or 1550 | ||||
Operating bandwidth | nm | ±15 | ||||
Isolation@23℃ | dB | ≧30 | ≧46 | ≧30 | ≧46 | |
Insertion loss typ. | dB | ≦0.40 | ≦0.60 | ≦0.50 | ≦0.60 | |
Insertion loss | dB | ≦0.60 | ≦0.80 | ≦0.70 | ≦0.80 | |
PDL(for Non-PM isolatir) | dB | ≦0.1 | ≦0.15 | ≦0.1 | ≦0.15 | |
Extinction ratio (for PM isolator) | dB | ≧20(Type B) ≧22(Type F) | / | / | ||
PMD(for Non- PM isolator) | ps | ≦0.25 | ≦0.05 | ≦0.25 | ≦0.05 | |
Return loss |
| ≧55 | ≧55 | ≧55 | ≧55 | |
Power handling |
| ≦5W | 5W-10W | |||
Operating temperature |
| -5∽+70 | ||||
Storage temperature |
| -40∽+80 | ||||
Dimensions | mm | Φ5.5XL30X(for Non-PM isolator) Φ5.5xL35(for PM Isolator) | L70*W12*H8 | |||
*The above specification is without connector.
*Other specifications can be made on customer request.
***For PM Fiber B type-Both Axis Working. F type=Fast axis blocked.
HP(M)ISO-X-X-XXXX-X-X-X-X-XX/XXX-XX*XX
Package Size:5.5x30,5.5x35,70*12*8 ect.
Input/Output connector.FC/UPC,FC/APC ect. Average Power Handling:1=1W,5=5W,10=10W ect.
C=Continue Working. P(!)=Pulse Peak Power(1kw)ect.
Fiber Type :0=SMF-28e,4=other
Pigtail Tyoe:0=250um,1=900um,4=other
Operating Wavelength:1310=1310nm,1550=1550nm ect
(for PMISO) B=Both Axis Working, F=Fast axis blocked
HPISO:NON PM Fiber, HPMISO: PM Fibe
High Power (Non-PM or PM)Isolator
If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
